Flat Top Stock Crates

Stockcrate Options – Galvanized Frames with Mesh, Plywood, or Alloy Sides

There are three styles of stockcrates available. Option one is manufactured from 75 x 75 x 4 mesh welded to a 25 x 25 box section frame; hot dip galvanized with 1.6mm galvanized panel front.

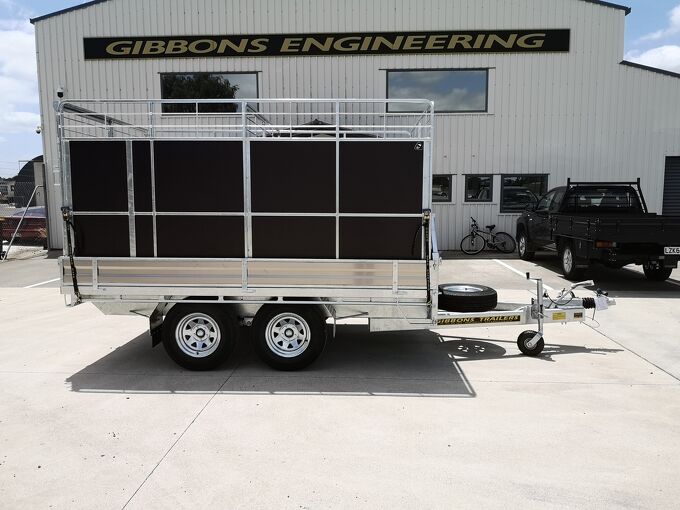

Option two is manufactured from a 25 x 25 box section frame, hot dip galvanized with 1.6mm galvanized panel front and 12mm plywood sides and rear.

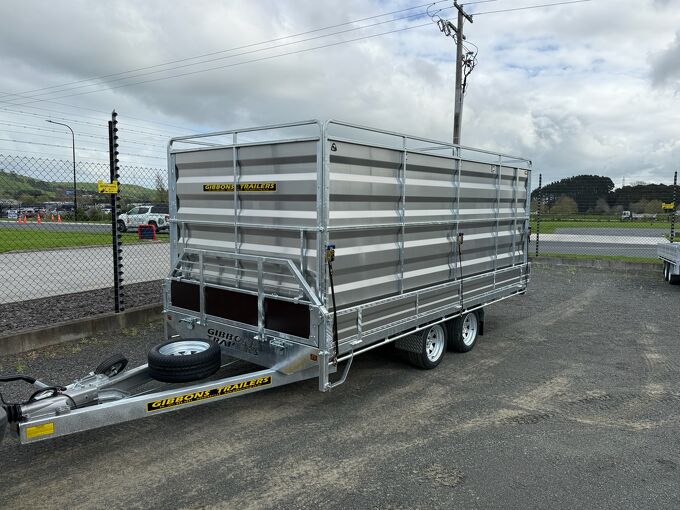

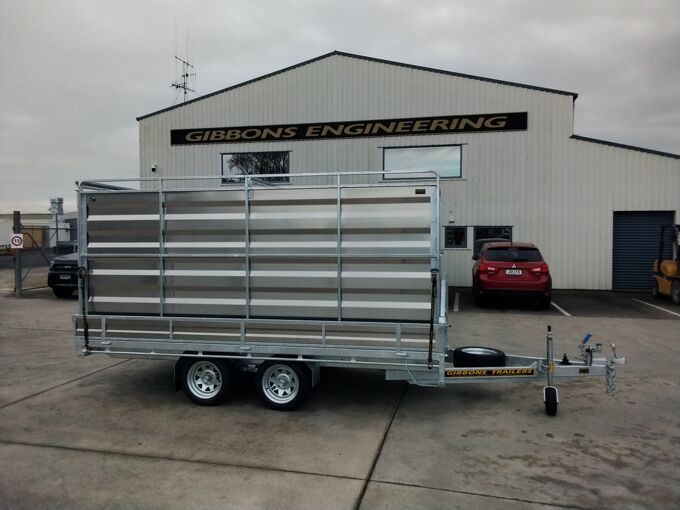

Option three is manufactured from 25 x 25 box section frame hot dip galvanized with 3mm pressed alloy sides

Crates are in four parts and have a sliding back door. Option 1 and 2 are 1535mm high from the deck of the trailer and option 3 is 1600mm high from the deck of the trailer.

Extras:

-Mesh center door

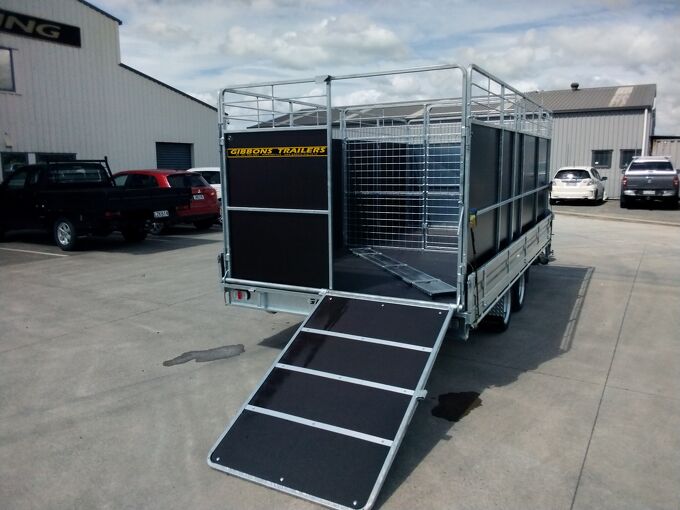

-Sliding back door/ramp

Option 1: 3150 x 2050

Option 2: 3650 x 2050

Option 3: 4150 x 2050
